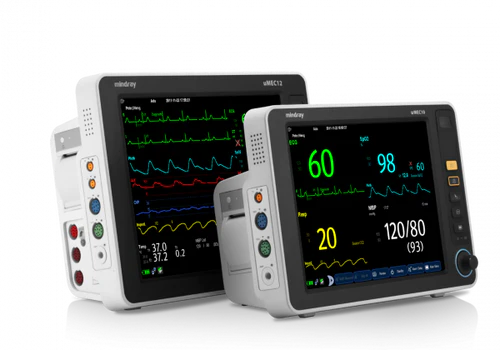

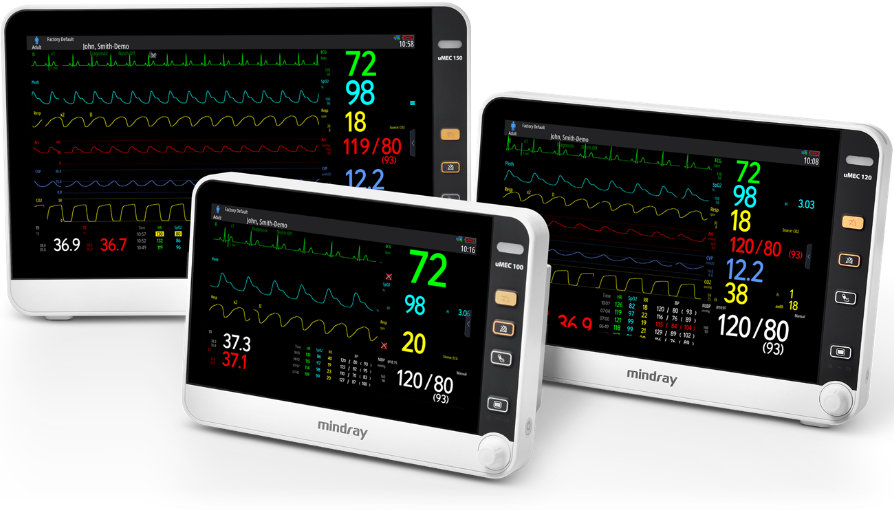

Monitor functii vitale MINDRAY uMEC 10-12

Dimensiune monitor:
uMEC 10: 315mm x 155mm x 220mm
uMEC 12: 345mm x 160mm x 255mm
Greutate:
uMEC 10: ≤ 3.5kg (Configuratie standard cu baterie litiu și recorder)
uMEC 12: ≤ 4kg (Configuratie standard cu baterie litiu și recorder)
Tip afișaj:
uMEC 10: 10.4” TFT LCD color sau touchscreen 1
uMEC 12: 2.1” TFT LCD color sau touchscreen
Rezolutie:
uMEC 10: 800 x 600 pixeli
uMEC 12: 800 x 600 pixeli
Forme de unda:
uMEC 10: Pana la 7
uMEC 12: Pana la 8
Afisaj extern:
uMEC 10: 1 afisaj prin VGA
uMEC 12 :1 afisaj prin VGA
ECG
Set de electrozi:
uMEC 10: 3-lead: I, II, III
uMEC 12: 5-lead: I, II, III, aVR, aVL, aVF, V
Recunoaștere automata 3/5 lead:
uMEC 10: Da
uMEC 12: Da
Ghidaj caștig:
uMEC 10: x0.125, x0.25, x0.5, x1, x2, x4, Auto
uMEC 12: x0.125, x0.25, x0.5, x1, x2, x4, Auto
Viteza de citire:
uMEC 10: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
uMEC 12: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
Lațimea de banda:
uMEC 10: Diagnostic: 0.05-150Hz, Monitor: 0.5-40Hz, Chirurgical: 1-20Hz, ST: 0.05-40Hz
uMEC 12: Diagnostic: 0.05-150Hz, Monitor: 0.5-40Hz, Chirurgical: 1-20Hz, ST: 0.05-40Hz
Protectie defibrilare:
uMEC 10: Rezistenta la 5000V (360J)
uMEC 12: Rezistenta la 5000V (360J)
Timp de recuperare:
uMEC 10: <10 s
uMEC 12: <10 s
CMRR Diagnostic:
uMEC 10 : >90 dB, Monitor, Chirurgical, ST: >105 dB Diagnostic:
uMEC 12: >90 dB, Monitor, Chirurgical, ST: >105 dB
Analiza ST Interval:
uMEC 10: 2.0 mV pana la 2.0 mV
uMEC 12: Interval: -2.0 mV pana la 2.0 mV
Precizie ST:
uMEC 10: ±0.02 mV sau ±10%, cel mai mare, (-0.8 pana la +0.8 mV)
uMEC 12: ±0.02 mV sau ±10%, cel mai mare, (-0.8 pana la +0.8 mV)
Rezoluție ST:
uMEC 10: 0.01 mV
uMEC 12: 0.01 mV
Analiza aritmie:
uMEC 10: Da, multi-lead, 24 clasificari
uMEC 12: Da, multi-lead, 24 clasificari
Analiza QT:
uMEC 10: Da
uMEC 12: Da
Rata cardiaca:
uMEC 10: Adu: 15-300 bpm, Ped/Neo: 15-350 bpm
uMEC 12: Adu: 15-300 bpm, Ped/Neo: 15-350 bpm
Rezolutie:
uMEC 10: 1 bpm
uMEC 12: 1 bpm
Precizie:
uMEC 10: ±1 bpm sau ±1%, cel mai mare
uMEC 12: ±1 bpm sau ±1%, cel mai mare
Analiza HR:
uMEC 10: Da
uMEC 12: Da
Respiratie:
uMEC 10: Adu: 0-120 rpm, Ped/Neo: 0-150 rpm
uMEC 12: Adu: 0-120 rpm, Ped/Neo: 0-150 rpm
Rezolutie Respiratie:
uMEC 10: 1 rpm
uMEC 12: 1 rpm
Precizie Respiratie:
uMEC 10: 7-150 rpm: ±2 rpm sau ±2%, 0-6 rpm: Nedefinit
uMEC12: 7-150 rpm: ±2 rpm sau ±2%, 0-6 rpm: Nedefinit
Lead:
uMEC 10: I sau II
uMEC 12: I sau II
Viteza de citire respiratie:
uMEC 10: 3mm/s, 6.25 mm/s, 12.5 mm/s, 25 mm/s sau 50 mm/s
uMEC 12: 3mm/s, 6.25 mm/s, 12.5 mm/s, 25 mm/s sau 50 mm/s
SpO2:
uMEC 10: 0-100%
uMEC 12: 0-100%
Rezolutie SpO2:
uMEC 10: 1%
uMEC 12: 1%
Precizie SpO2:
uMEC 10: ±2% (70-100%, Adu/Ped), ±3% (70-100%, Neo), Nespecificat (0-69%)
uMEC 12: ±2% (70-100%, Adu/Ped), ±3% (70-100%, Neo), Nespecificat (0-69%)
Rata de refresh SpO2:
uMEC 10: ≤2 s
uMEC 12: ≤2 s
Rata puls:
uMEC 10: 20-300 bpm (din SpO2), 30-300 bpm (din NIBP), 25-350 bpm (din IBP)
uMEC 12: 20-300 bpm (din SpO2), 30-300 bpm (din NIBP), 25-350 bpm (din IBP)
Precizie Puls:
uMEC 10: ±3 bpm (din SpO2), ±3 bpm sau ±3%, cel mai mare (din NIBP), ±1 bpm sau ±1%, cel mai mare (din IBP)
uMEC 12: ±3 bpm (din SpO2), ±3 bpm sau ±3%, cel mai mare (din NIBP), ±1 bpm sau ±1%, cel mai mare (din IBP)
Rezoluție Puls:
uMEC 10: 1 bpm
uMEC 12: 1 bpm
Rată de refresh Puls
uMEC 10: ≤2 s
uMEC 12: ≤2 s
NIBP:
uMEC 10: Metoda Oscilometrica automata
uMEC 12: Metoda Oscilometrica automata
Mod operare NIBP:
uMEC 10: Manual, Auto, STAT
uMEC 12: Manual, Auto, STAT
Parametri NIBP:
uMEC10: Sistolic, Diastolic, Mediu
uMEC12: Sistolic, Diastolic, Mediu
Interval sistolic:
uMEC 10: Adu: 25-290 mmHg, Ped: 25-240 mmHg, Neo: 25-140 mmHg
uMEC 12:Adu: 25-290 mmHg, Ped: 25-240 mmHg, Neo: 25-140 mmHg
Interval diastolic:
uMEC 10: Adu: 10-250 mmHg, Ped: 10-200 mmHg, Neo: 10-115 mmHg
uMEC 12: Adu: 10-250 mmHg, Ped: 10-200 mmHg, Neo: 10-115 mmHg
Interval mediu:
uMEC 10: Adu: 15-260 mmHg, Ped: 15-215 mmHg, Neo: 15-125 mmHg
uMEC12: Adu: 15-260 mmHg, Ped: 15-215 mmHg, Neo: 15-125 mmHg
Precizie NIBP :
uMEC 10: Eroare maxima medie: ±5 mmHg, Deviație standard maxima: 8 mmHg
uMEC 12: Eroare maxima medie: ±5 mmHg, Deviație standard maxima: 8 mmHg
Rezolutie NIBP:
uMEC 10: 1 mmHg
uMEC 12: 1 mmHg
Analiza NIBP:
uMEC 10: Da
uMEC 12: Da
Temperatura Canal:
uMEC 10: 1 canal
uMEC 12: 2 canale
Parametri temperatura:
uMEC 10: T1, T2 și TD
uMEC 12: T1, T2 și TD
Interval temperatura:
uMEC 10: 0 – 50°C (32 – 122 °F)
uMEC 12: 0 – 50°C (32 – 122 °F)
Rezolutie temperatura:
uMEC 10: 0.1°C
uMEC 12: 0.1°C
Precizie temperatura:
uMEC 10: ±0.1°C sau ±0.2°F (fara sonda)
uMEC 12: ±0.1°C sau ±0.2°F (fara sonda)
IBP (doar pentru uMEC12) Canal: pana la 2 canale
Interval IBP:
uMEC 10: 50 la 300 mmHg
uMEC 12: 50 la 300 mmHg
Rezoluție IBP:
uMEC 10: 1 mmHg
uMEC 12: 1 mmHg
Precizie IBP:
uMEC 10: ±2% sau ±1 mmHg, cel mai mare (fara senzor)
uMEC 12: ±2% sau ±1 mmHg, cel mai mare (fara senzor)
Sensibilitate IBP:
uMEC 10: 5 μV/V/mmHg
uMEC 12: 5 μV/V/mmHg
Impedanta IBP:
uMEC 10: 300 – 3000Ω
uMEC 12: 300 – 3000Ω
C.O. (doar pentru uMEC12): Metoda Termodiluatie
Interval C.O:
uMEC 10:  0.1 – 20 L/min
uMEC 12: 0.1 – 20 L/min
Precizie C.O:
uMEC 10:  ±5% sau ±0.1 L/min, cel mai mare
uMEC 12: ±5% sau ±0.1 L/min, cel mai mare
Rezolutie C.O:
uMEC 10: 0.1 L/min
uMEC 12: 0.1 L/min
CO2 (doar pentru uMEC12) Mod: Sidestream, Flow redus
Interval CO2:
uMEC 10: 0 – 20% (0 – 152 mmHg)
uMEC 12: 0 – 20% (0 – 152 mmHg)
Precizie CO2:
uMEC 10: ±0.1% (<1%), ±0.2% (1-4.9%), ±0.3% (5-6.9%), ±0.4% (7-11.9%)
uMEC 12: ±0.1% (<1%), ±0.2% (1-4.9%), ±0.3% (5-6.9%), ±0.4% (7-11.9%)
Rata de flux CO2:
uMEC 10: 90, 120 ml/min (Sidestream), 50 ml/min (Low flow)
uMEC 12: 90, 120 ml/min (Sidestream), 50 ml/min (Low flow)
Precizie CO2:
uMEC 10: ±15% sau ±15 ml/min, cel mai mare
uMEC 12: ±15% sau ±15 ml/min, cel mai mare
Timp de pornire CO2:
uMEC 10: <90s
uMEC 12: <90s
Timp de raspuns CO2:
uMEC 10: <5.5s @120 ml/min (adult), <4.5s @90 ml/min (neo)
uMec 12: <5.5s @120 ml/min (adult), <4.5s @90 ml/min (neo)
AWRR (Apneea):
uMEC 10: 0 – 150 rpm
uMEC 12: 0 – 150 rpm
Precizie AWRR:
uMEC 10: ＜60 rpm: ±1, 60-150 rpm: ±2
uMEC 12: ＜60 rpm: ±1, 60-150 rpm: ±2
Timp de apnee:
uMEC 10: 10s, 15s, 20s, 25s, 30s, 35s, 40s
uMEC 12: 10s, 15s, 20s, 25s, 30s, 35s, 40s
Stocare date Trend:
uMEC 10: 1200h (interval 10min), 120h (interval 1min), 4h (interval 5sec)
uMEC 12: 1200h (interval 10min), 120h (interval 1min), 4h (interval 5sec)
Evenimente alarma:
uMEC 10: 1800 evenimente si forme de unda asociate
uMEC 12: 1800 evenimente si forme de unda asociate
Evenimente aritmii:
uMEC 10: 128 evenimente aritmii si forme de unda asociate
uMEC 12: 128 evenimente aritmii si forme de unda asociate
NIBP:
uMEC 10: 1600 masuratori
uMEC 12: 1600 masuratori
Forme de unda:
uMEC 10: Max. 48h forme de unda complete
uMEC 12: Max. 48h forme de unda complete
Baterie:
uMEC 10: Baterie litiu-ion incarcabila
uMec 12: Baterie litiu-ion incarcabila
Voltaj:
uMEC 10: 11.1 VDC
uMEC 12: 11.1 VDC
Capacitate:
uMEC 10: 2500 mAh (4500 mAh opțional)
uMEC 12: 2500 mAh (4500 mAh opțional)
Timp de functionare:
uMEC 10: 4h (2500 mAh), 8h (4500 mAh)
uMEC 12: 4h (2500 mAh), 8h (4500 mAh)
Timp de reincarcare:
uMEC 10: 4h maxim (2500 mAh), 8h maxim (4500 mAh)
uMEC 12: 4h maxim (2500 mAh), 8h maxim (4500 mAh)
Interfatare:
uMEC 10: 1 conector AC, 1 conector RJ45, 2 USB 2.0, 1 VGA, 1 multifunctional
uMEC 12: 1 conector AC, 1 conector RJ45, 2 USB 2.0, 1 VGA, 1 multifunctional
Suport WiFi:
uMEC 10: Da, bandă duala 5G/2.4G
uMEC 12: Da, banda duală 5G/2.4G
Scanner coduri de bare:
uMEC 10: Suport
uMEC 12: Suport
Imprimanta retea:
uMEC 10: Suport
uMec 12: Suport
Recorder Tip:
uMEC 10: Termic, Viteza: 12.5mm/s, 25 mm/s, 50 mm/s
uMEC 12: Termic, Viteza: 12.5mm/s, 25 mm/s, 50 mm/s
Conditii de alimentare:
uMEC 10: 100-240 VAC, 50/60Hz, 1.5 A
uMEC 12: 100-240 VAC, 50/60Hz, 1.5 A
Conditii de mediu:
uMEC 10 : Temperatura: Operare: 0-40°C, Stocare: -20-60°C, Umiditate: 15-95%, Presiune barometrica: 427.5-805.5 mmHg
uMEC 12: Temperatura: Operare: 0-40°C, Stocare: -20-60°C, Umiditate: 15-95%, Presiune barometrica: 427.5-805.5 mmHg
